Four-Post Lifts by BendPak

HD-7MZ

SKU# 5175508

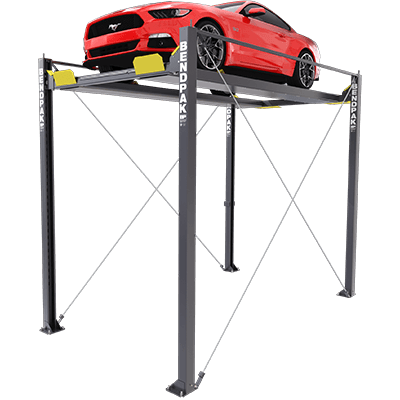

3,175-kg. Capacity Super-Tall Four-Post Lift / Vehicle Display Platform


The HD-7MZ is a literal giant. This four-post lift is also a magnificent display platform that will effortlessly lift up to 3,175 kg. over 3.65 m into the air! Specially made for dealers, it's perfect for stacking taller vehicles and getting them seen!

HD-7MZ is a Four-Post Lift that doubles as a display lift
User Manual Download
Sales Sheet Download
Warranty Download

Amazingly Tall Vehicle Display Lift for Dealers

The HD-7MZ was created as the exclusive showroom vehicle display lift for dealerships nationwide. As part of our push to offer dealers better vehicle display options, the HD-7MZ stacks two cars in a "jewel box" glass display in front of their dealership. Attract customer’s passing by on nearby highways or within the main showroom. Our specially designed four-post lift features full 360-degree visibility of the car from all sides and includes an attractive low-sheen, rich black powder coat finish. More than just unique styling, this car lift is easy to use and features a platform locking system that safely secures raised vehicles in varied height positions for an open display viewing area. Its hydraulic drive system is hidden under the fully covered platforms for a clean, clutter-free look. The HD-7MZ four-post lift has a 3,175-kg. lift capacity and 4,775 mm long runways to accommodate a variety of vehicle types and wheelbases.

Why get a display lift?

Auto dealerships are always looking for an edge when it comes to their displays. The newest vehicles, or the ones most likely to attract customer attention, need to be prominently shown and visible from the street. The narrow dimensions of this lift, as well as its sleek, low-sheen black coloration, allow it to blend seamlessly into busy lots and showrooms. This way, the vehicles are all that people notice. Its 3.65 m high rise is also perfect for getting cars seen from over the highway or across the street. Designed originally for dealerships of any size, this lift is perfect for anyone desiring to gain an edge over the competition. Our job is to help make your inventory look its best, so you can increase your dealership's foot traffic and close more deals.

Same great benefits as other lifts

The HD-7MZ has all the same safety and convenience features as other BendPak four-post lifts. A one-touch pneumatic safety release instantly releases all locks simultaneously, and the lift's lone hydraulic cylinder is neatly tucked under the power-side runway. Additionally, the entire undersides of both runways are completely covered to improve the aesthetics of the lift when viewed from underneath. Since this lift reaches incredible heights, we felt it necessary to cover up the mechanical and electric-hydraulic componentry. There's simply no better-looking and higher-reaching display lift on the market than the HD-7MZ.

Features

  • 3,175-kg. maximum lifting capacity
  • Super tall rise of delivers 3.7 m of lifting height
  • Low sheen black color
  • Underside of runways are shielded by full-length covers
  • Electric / hydraulic power system
  • Single hydraulic cylinder mounted underneath runway
  • Internal anti-sway slider blocks in each column
  • Oversized self-lubricating cable rollers
  • Features heavy-duty 38 mm aircraft cable
  • Rugged 32 mm roller axles
  • Multi-position safety locks in each column
  • Adjustable lock ladders
  • Ramps feature non-skid surface
  • Push-button pneumatic safety release

HD-7MZ Specifications

HD-7MZ specs diagram

Capacity

Lifting Capacity*
7000
*Max Capacity / Front Axle
3500
*Max Capacity / Rear Axle
3500

Rise

A - Min. Runway Height:
4.5
B - Max. Rise:
140
C - Max. Lifting Height:
145
Time to Full Rise:
60 seconds

Outside Dimensions

D - Overall Width:
110.25
E - Outside Length:
198
F - Overall Length:
224.5
G - Height of Columns:
158

Inside Dimensions

H - Width Between Columns:
100
I - Drive-Thru Clearance:
86.5

Runways

J - Runway Width:
19
K - Length of Runways:
188
L - Width Between Runways:
37.5 or 44.5
M - Runway Centerline:
56.5 or 63.5
N - Outside Edge of Runways:
75.5 or 82.5

Minimum Wheelbase

Rated Capacity:
135
75% Capacity:
115
50% Capacity:
95
25% Capacity:
80

Locking

Locking Positions:
30
Lock Spacing:
Every 4" (102 mm)

Power Unit

Motor:
208-230 VAC / 50-60 Hz / 1Ph
Noise:
45 dB

Shipping

Weight:
Dimensions:

Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.

Note: Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via contact@bendpak.com.
